Wheel offset refers to the distance from the wheel’s mounting hub to the centerline of the wheel. It plays a crucial role in how a wheel fits on your vehicle and can significantly impact handling, appearance, and clearance.

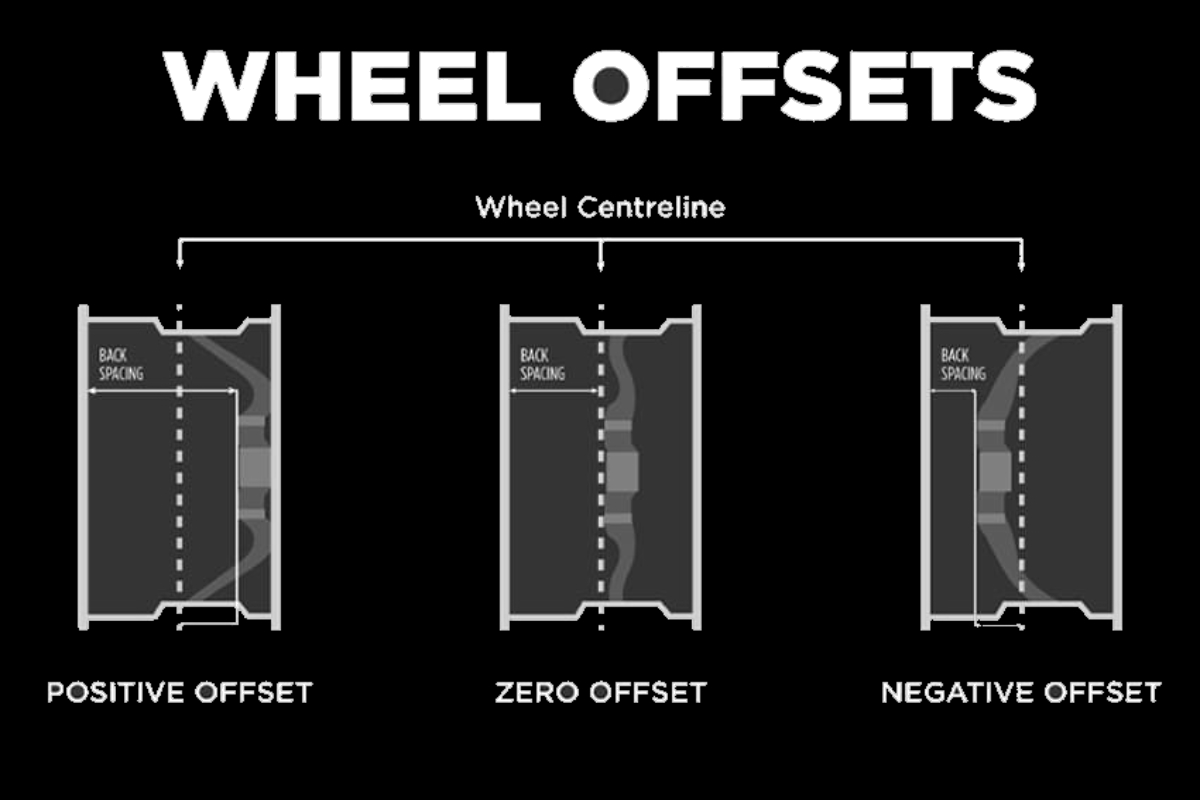

1. What is Wheel Offset?

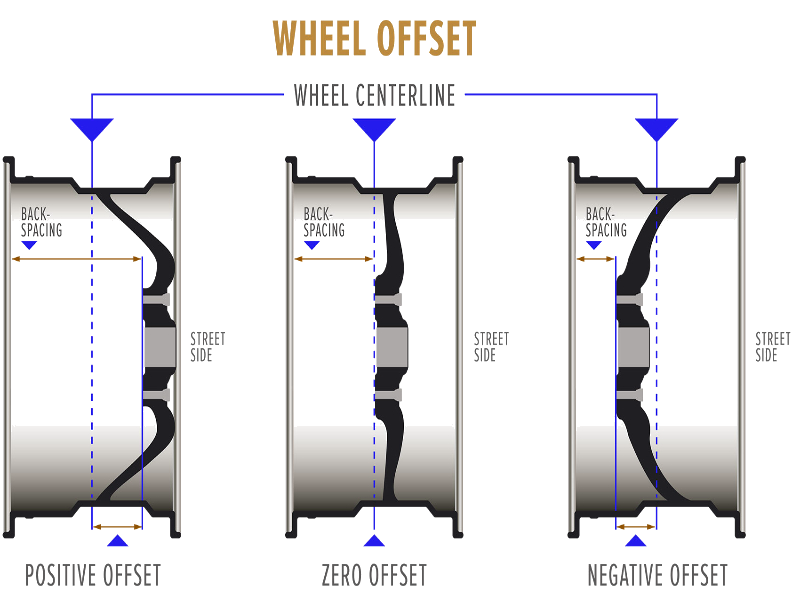

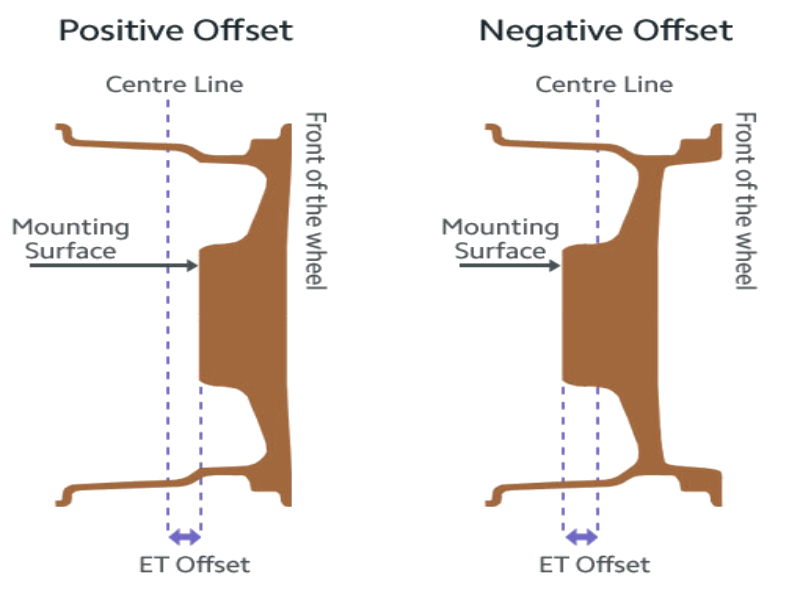

Wheel offset is measured in millimeters and can be positive, negative, or zero:

• Positive Offset: The hub mounting surface is closer to the outer (road-facing) side of the wheel. This setup is common on front-wheel-drive cars and newer vehicles, where the wheels need to be tucked under the vehicle’s body for more clearance.
• Negative Offset: The hub mounting surface is closer to the inside of the wheel (facing the suspension). This type of offset is often seen in deep-dish or aggressive aftermarket wheels, pushing the wheel outward, providing a wider stance.
• Zero Offset: The hub mounting surface is exactly at the wheel’s centerline. This is the neutral point where the wheel neither extends out nor tucks in from the mounting surface.

2. How Offset Affects Your Vehicle

The offset of your wheels directly impacts several important aspects of your vehicle’s performance and appearance:

• Handling: A change in offset alters the suspension geometry. A more positive offset brings the wheels closer to the body, which can reduce stability in turns. A more negative offset pushes the wheels outward, which can improve cornering grip but might affect steering response.

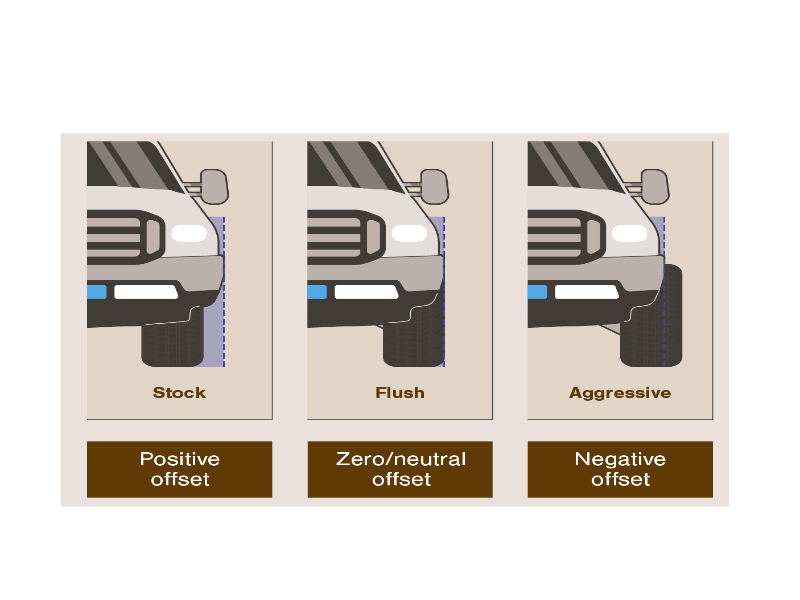

• Aesthetics: Offset greatly influences how your wheels sit in relation to your vehicle’s fenders. A negative offset gives a more aggressive, wider stance, while a positive offset keeps the wheels more tucked inside the fenders, giving a more subtle look.
• Clearance: Incorrect offset can cause rubbing on the suspension components, brake calipers, or wheel wells. Too much positive offset may lead to the tires rubbing against the inner wheel well, while excessive negative offset could cause the wheels to stick out, leading to issues with fender clearance or bodywork damage.

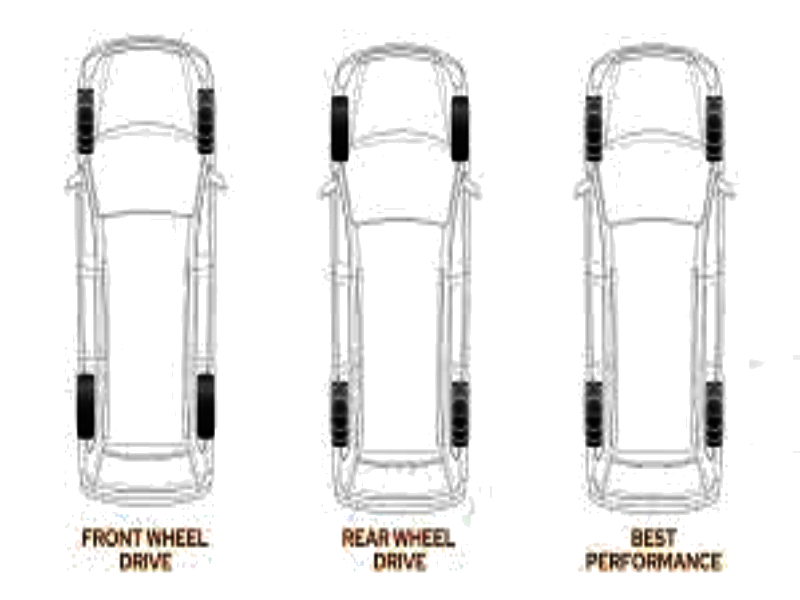

3. Matching Offset to Vehicle Type

Different vehicle types require specific offsets to ensure proper fitment. For example:

• Front-Wheel-Drive (FWD) Vehicles: Usually require a positive offset to keep the wheels within the body for better handling and turning radius.
• Rear-Wheel-Drive (RWD) and Performance Cars: A more neutral or negative offset is common to provide a wider track for improved traction and stability.
• Off-Road and Trucks: Often use negative offsets to accommodate larger tires and provide a wider stance for better off-road stability.

4. Choosing the Right Offset for Aftermarket Wheels

When upgrading to aftermarket wheels, it’s important to select the correct offset for your vehicle to avoid issues with handling or clearance. Many aftermarket wheels offer varying offset options to match different vehicle requirements. Consulting your vehicle’s OEM specifications is a good starting point, but you may also want to test-fit wheels to ensure compatibility with your car’s suspension and brakes.

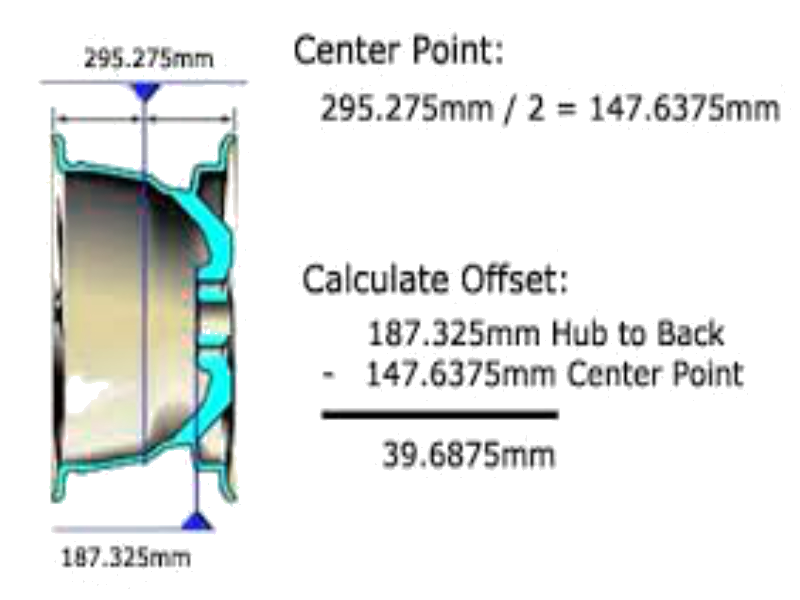

5. How to Measure Wheel Offset

Measuring wheel offset is straightforward. The offset is typically stamped or engraved on the inside of the wheel, denoted by “ET” followed by a number (e.g., ET35). The number represents the offset in millimeters. A positive number indicates positive offset, while a negative number indicates negative offset.

Conclusion

Understanding wheel offset is crucial when selecting new wheels. The right offset ensures optimal performance, prevents clearance issues, and enhances the aesthetics of your vehicle. Whether you're upgrading for performance or style, make sure the wheels you choose have the correct offset for your specific vehicle type.
